In the fast-paced food and beverage industry, cooling is no longer just about comfort; it has evolved into a high-precision science. The shift from standard HVAC systems to specialized process cooling is a critical operational change. Precise temperature control is paramount, directly impacting food safety protocols like HACCP, defining product texture, and extending shelf life. In this landscape, modern Commercial Chillers are not merely utility equipment. They function as vital production accelerators, enabling facilities to achieve higher throughput, consistent quality, and strict regulatory compliance. This guide explores how these systems are engineered for the unique demands of food and beverage processing, from core mechanics to strategic implementation.
Process vs. HVAC: F&B requires process chillers designed for high-duty cycles and precise ΔT management.
Material Integrity: Food-grade requirements necessitate 304/316 stainless steel and double-wall heat exchangers to prevent contamination.
ROI Drivers: Transitioning from ice cooling or inefficient central systems to dedicated chillers often yields a sub-12-month payback through throughput gains.
Redundancy is Mandatory: Multi-circuit designs prevent total facility downtime during maintenance or component failure.
Understanding how a commercial chiller operates is fundamental to appreciating its value in a food and beverage facility. The system's primary job is not to create cold, but to move heat from where it's not wanted (your product or process) to where it can be safely dissipated (the external environment). This is accomplished through the vapor compression refrigeration cycle, a continuous loop involving four key components.
The cycle works in a closed loop to transfer thermal energy. It relies on a chemical refrigerant that changes state from liquid to gas and back again.
Evaporator: Low-pressure liquid refrigerant flows through the evaporator. Here, it absorbs heat from the process fluid (like water or glycol), causing the refrigerant to boil and turn into a low-pressure gas. Your process fluid is now chilled and ready to be pumped to the production line.
Compressor: This gas is then drawn into the compressor, which is the heart of the system. The compressor pressurizes the gas, significantly increasing its temperature.
Condenser: The hot, high-pressure gas moves to the condenser. The condenser expels the heat from the refrigerant into the surrounding air or a separate water circuit, causing the refrigerant to cool down and condense back into a high-pressure liquid.
Expansion Valve: This liquid then passes through an expansion valve, which causes a sudden drop in pressure. This pressure drop rapidly cools the refrigerant, preparing it to enter the evaporator and repeat the cycle.

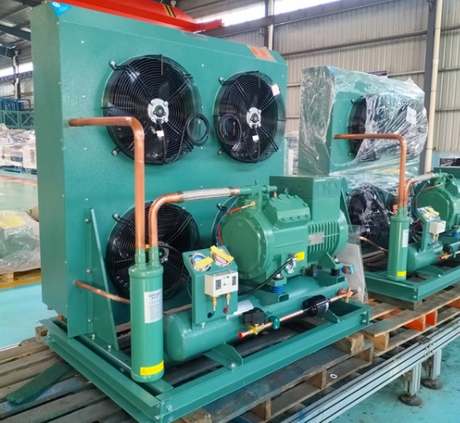

The choice of Chiller Compressor technology depends heavily on the scale and demands of your operation. Each type offers distinct advantages in capacity, efficiency, and scalability.
Scroll Compressors: These are the workhorses for smaller to medium-sized loads, typically ranging from 2 to 140 tons of cooling capacity. They use two spiral-shaped scrolls to compress the refrigerant. Their design has fewer moving parts, making them reliable and quieter. They are ideal for modular setups where you can add more units as your production capacity grows.
Screw Compressors: For heavy-duty, continuous cooling loads found in large-scale dairies, bottling plants, or meat processing facilities, screw compressors are the preferred choice. They handle capacities from 30 to over 400 tons. These robust machines are designed for constant operation and offer excellent part-load efficiency, which is crucial in facilities with variable production schedules.
The condenser's job is to reject the heat collected from your process. Its design significantly impacts the overall efficiency and footprint of the system, especially within the layout of a chiller room.
Air-Cooled Condensers: These units use ambient air blown over condenser coils to dissipate heat. They are generally less expensive to install and do not require cooling towers or complex water treatment plans. However, their efficiency can decrease in hot climates or during summer months when ambient air temperatures are high.

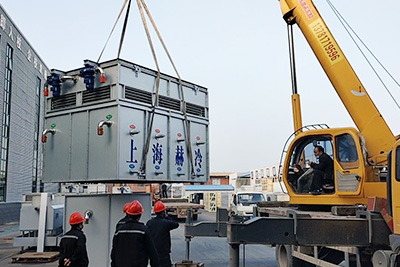

Water-Cooled Condensers: These are more efficient, especially for large-scale operations. They use water from a cooling tower to remove heat from the refrigerant. While they offer superior performance and a smaller physical footprint, they come with higher initial costs and require ongoing water quality management to prevent scale and corrosion.
The evaporator is where the critical heat exchange happens. Here, the refrigerant absorbs heat from the fluid that directly cools your equipment. The choice of this process fluid—typically water or a water-glycol mixture—is vital. If your process requires temperatures above 7°C (45°F), water is an efficient medium. For any application approaching or dipping below freezing, a food-grade propylene glycol mixture is necessary to prevent the fluid from freezing inside the evaporator, which could cause catastrophic damage to the system.
Precision cooling is not a one-size-fits-all solution. Different sectors within the food and beverage industry have unique thermal challenges that require specialized chiller applications to ensure product safety, quality, and consistency.
In dairy, speed and precision are non-negotiable. Raw milk must be cooled from body temperature (around 38°C) to below 4°C as quickly as possible to inhibit bacterial growth. Commercial chillers provide the rapid, high-volume cooling needed to meet these stringent safety standards. They also play a critical role in pasteurization, where chilled water or glycol is used to rapidly cool the milk after it has been heated, completing the process in a controlled and efficient manner.
Chillers are indispensable in brewing and winemaking, influencing the final product at multiple stages.
Wort Cooling: After boiling, the wort must be cooled rapidly to the ideal temperature for yeast pitching. A chiller provides the necessary cooling capacity to bring a large volume of hot liquid down to temperature in a short time, preventing contamination by unwanted microorganisms.
Fermentation Control: Fermentation is an exothermic process, meaning it generates heat. Chillers circulate glycol through jacketed fermentation tanks to maintain a precise temperature, protecting delicate yeast profiles and ensuring consistent flavor development.

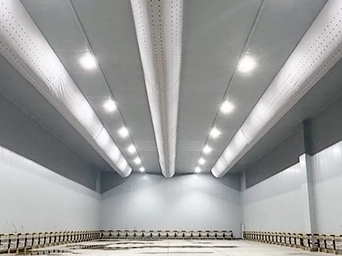

Commercial Chiller Room Storage: Once fermentation is complete, a dedicated Commercial Chiller Room or cold storage area is used to maintain stable temperatures for conditioning, aging, and storing finished kegs and bottles, preserving the product's quality until it reaches the consumer.
Temperature control is key to texture and structure in baking and confectionery.
Dough Cooling: High-speed industrial mixers generate significant frictional heat, which can cause dough to ferment prematurely. Chillers supply cold water to the mixer's jacket, controlling the dough temperature and ensuring consistent product quality from batch to batch.
Chocolate Tempering: Achieving the perfect "snap" and glossy finish in chocolate requires a precise cooling curve. Chillers provide the controlled temperature ramps needed to properly crystallize the cocoa butter, a critical step that defines the final product's texture and appearance.
For meat and seafood processors, cooling is a primary food safety control point. Chillers are used for hydrocooling, where products are immersed in or sprayed with chilled water to rapidly lower their core temperature. This process is essential for chilling carcasses and fish to meet strict USDA and FDA safety windows, drastically reducing the risk of pathogen growth and extending shelf life.
Cooling is also crucial at the final stage of production. On packaging lines, chilled water is often used to cool heat-sealing equipment or to set heat-sealed films on products like yogurt cups or ready-to-eat meals. In vacuum sealing applications, chilled platens can prevent products from sticking to the machinery, increasing line speed and reducing downtime.
When designing a cooling strategy, a key decision is whether to use a large, centralized system or smaller, dedicated chillers at the point of use. Both approaches have distinct advantages, and the right choice depends on the facility's scale, process variability, and future growth plans.
A centralized chiller plant, often housed in a dedicated mechanical room, supplies chilled fluid to the entire facility through a network of pipes. This approach is common in large, established operations with high and relatively stable cooling demands.
Pros: Centralized systems typically offer higher peak energy efficiency due to the scale of the equipment. Maintenance is consolidated in one location, simplifying service routines. For massive facilities, the total cost of ownership (TCO) can be lower over the long term.
Cons: The biggest risk is the single point of failure; if the central chiller goes down, the entire plant's cooling capacity can be compromised. The extensive piping required can lead to significant pumping energy losses and higher installation complexity.
This strategy involves placing smaller, self-contained chillers next to the specific pieces of equipment they serve. For example, a single fermentation tank or a critical mixing vessel might have its own dedicated chiller.
Pros: This approach offers unparalleled flexibility. You can tailor the temperature, pressure, and flow rate for each specific machine, optimizing performance. It is much easier to scale production by simply adding another dedicated chiller as new lines are installed. Redundancy is inherent; the failure of one unit only affects a single piece of equipment, not the entire plant.
Cons: The primary downside is the higher aggregate maintenance load, as service technicians must attend to multiple units across the facility. The initial capital cost for several small units may also be higher than for one large central unit.
| Feature | Centralized Chiller Plant | Decentralized (Point-of-Use) Chillers |
|---|---|---|
| Best For | Large facilities with consistent, high-volume cooling loads. | Facilities with diverse process needs and plans for modular growth. |
| Efficiency | High peak efficiency, but can be inefficient at part-load. | Optimized for specific machine loads; higher overall system efficiency. |
| Redundancy | Low (single point of failure risk). Requires N+1 central units. | High (failure of one unit does not stop the entire plant). |
| Scalability | Difficult and expensive to expand. | Easy; add new chillers as production lines are added. |
| Maintenance | Centralized and simpler to schedule. | Distributed across multiple units, potentially more complex. |
Many modern facilities adopt a hybrid model. They use a central chiller room for general base loads, such as facility air conditioning or large cold storage areas, while deploying dedicated trim chillers for high-precision lines that require tightly controlled, independent temperature loops. This approach combines the efficiency of a central system with the flexibility and redundancy of decentralized cooling.
Choosing the right chiller for a food and beverage application goes beyond calculating the required tonnage. It involves a careful evaluation of materials, coolant types, and true operational efficiency to ensure food safety, system longevity, and a low total cost of ownership.
Compliance with food safety regulations is non-negotiable. This directly influences the materials used in the chiller's construction.
Wetted Parts: Any component that comes into contact with the process fluid (the "wetted parts") must be made of non-ferrous materials like stainless steel (typically 304 or 316 grade) or other approved polymers. This prevents rust and corrosion from contaminating the fluid that circulates through your production equipment.
Double-Wall Heat Exchangers: When using a chiller to produce potable water or to cool a product that will be directly consumed, a double-wall heat exchanger is often required. This design provides two layers of separation between the refrigerant and the process fluid, making it virtually impossible for a refrigerant leak to contaminate the product.
The fluid used to transfer heat from your process to the chiller is a critical decision based on your target operating temperatures.
Potable Water: For applications requiring temperatures above 7°C (45°F), clean water is an excellent and efficient coolant. It has high heat capacity and is readily available.
Propylene Glycol: For any process that operates near or below freezing, a mixture of water and food-grade propylene glycol is essential. Glycol acts as an antifreeze, preventing the coolant from freezing and damaging the system. It also provides valuable lubrication for pump seals and helps inhibit corrosion within the piping network.
While metrics like Coefficient of Performance (COP) are useful, they often measure a chiller's efficiency only at full load. In the real world, food and beverage facilities have fluctuating production schedules, meaning their chillers spend most of their time operating at partial capacity. This is why a more sophisticated metric is needed.
IPLV (Integrated Part Load Value) is the truest measure of a chiller's annual operating costs. It is a weighted average of the chiller's efficiency at four different capacity points (100%, 75%, 50%, and 25%), reflecting a more realistic operational profile. When comparing chiller models, always prioritize a higher IPLV, as it will translate directly to lower energy bills over the life of the equipment.
Investing in a commercial chiller system involves more than the initial purchase price. To maximize return on investment (ROI) and ensure operational continuity, you must consider the total cost of ownership (TCO), which includes maintenance, energy consumption, and potential downtime risks.
One of the most overlooked operational costs is the impact of poor water quality. Mineral buildup, or "scaling," inside the tubes of a Condenser for Chiller Room units can act as an insulator, drastically reducing heat exchange efficiency. A mere 1/16th of an inch of scale can increase energy consumption by 15% or more. A proactive water treatment and descaling program is not an optional expense; it is essential for maintaining design efficiency and controlling energy bills.
In a 24/7 production environment, downtime is not an option. This is why redundancy is a critical design feature. An N+1 compressor configuration, for example, means that if a system requires two compressors to meet the peak load (N=2), a third compressor (the "+1") is installed. This backup unit can take over automatically if one of the primary units fails or needs to be taken offline for service, ensuring 99.9% uptime and uninterrupted production.
Modern chillers are designed with maintenance in mind. Look for features that simplify service and reduce labor costs:
Easy Access: Removable side panels and patent-access doors allow technicians to easily clean condenser coils and access internal components without extensive disassembly.
Remote Monitoring: IoT sensors that monitor vibration, pressure, and temperature can provide early warnings of potential failures. This allows for predictive maintenance, where service is scheduled before a catastrophic failure occurs, minimizing unplanned downtime.
The business case for a new chiller often becomes clear when you calculate the full ROI. The calculation should go beyond the initial equipment cost and factor in multiple sources of savings:
Reduced Water Waste: A closed-loop chiller system re-circulates coolant, eliminating the massive water consumption and sewage costs associated with using "once-through" city water for cooling.
Increased Throughput: By shortening cooling cycle times, a properly sized chiller can directly increase the number of batches or units your facility can produce per day. This boost in throughput often provides the fastest path to payback, sometimes in less than 12 months.
Improved Product Quality: Consistent and precise temperature control reduces product spoilage and waste, leading to higher yields and more reliable revenue.
A well-engineered commercial chiller system is far more than a utility expense; it is a strategic asset that unlocks competitive advantages. By providing precise, reliable, and efficient cooling, these systems safeguard product integrity, comply with stringent safety standards, and accelerate production throughput. They transform a potential bottleneck into a powerful enabler of growth. For decision-makers, the path forward involves a clear-eyed assessment of operational needs. By focusing on a few key areas, you can ensure your cooling investment delivers maximum value for years to come.
Your final checklist should include:
Accurate Load Calculation: Ensure you have a precise understanding of your thermal load to size the system correctly.
Material Compliance: Verify that all wetted components meet food-grade standards to prevent contamination.
Redundancy Planning: Build in sufficient redundancy (e.g., N+1 compressors) to protect against costly downtime.
A: The primary differences are duty cycle and precision. HVAC chillers are designed for comfort cooling with relatively stable loads. Process chillers are built for the demanding, 24/7 industrial environment of food and beverage facilities. They offer much tighter temperature control (often within ±0.5°C), are constructed with more durable components, and can handle the rapid load changes common in production cycles.
A: Propylene glycol is used for two main reasons. First, it acts as an antifreeze, allowing the system to operate at temperatures below 0°C (32°F) without the coolant freezing and damaging the chiller. This is essential for applications like ice cream production or flash freezing. Second, glycol contains corrosion inhibitors that protect the internal piping and components of the chiller and your equipment, extending system longevity.
A: Chiller capacity is measured in tons, where one ton of cooling is 12,000 BTU/hr. The standard formula to calculate the required tonnage is: Tons = (500 × GPM × ΔT) / 12,000. Here, GPM is the gallons per minute of fluid flow, and ΔT (Delta T) is the difference in temperature (°F) between the fluid entering and leaving your process. Accurate calculation is critical to avoid undersizing or oversizing the unit.
A: A preventative maintenance schedule is key. While intervals vary by manufacturer and operating conditions, a general best practice is to have a qualified technician perform a major inspection and service annually. This includes checking refrigerant levels, testing electrical components, and cleaning coils. Regular daily or weekly visual checks by onsite staff can also help spot potential issues like leaks or unusual noises before they become major problems.
A: It is generally not recommended. An air-cooled chiller rejects a significant amount of heat into its surrounding environment. Placing it inside a production area would increase the ambient temperature, potentially affecting other processes and putting an extra load on the facility's HVAC system. These units should be installed outdoors or in a dedicated mechanical room with robust ventilation to effectively exhaust the hot air.
