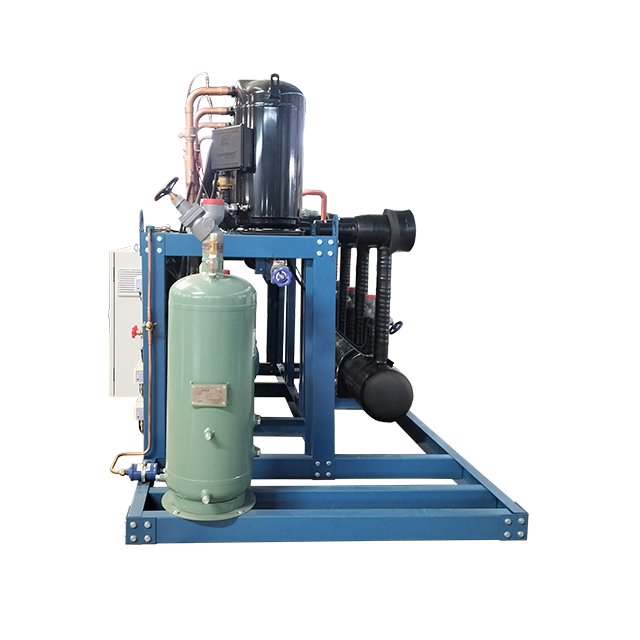

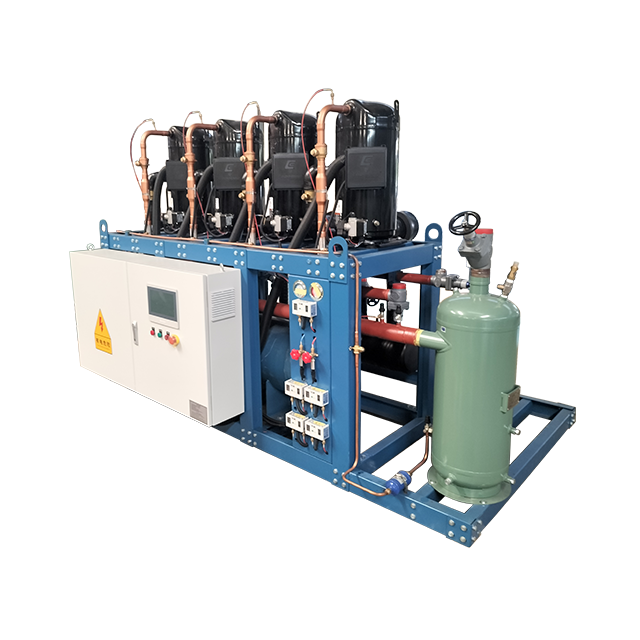

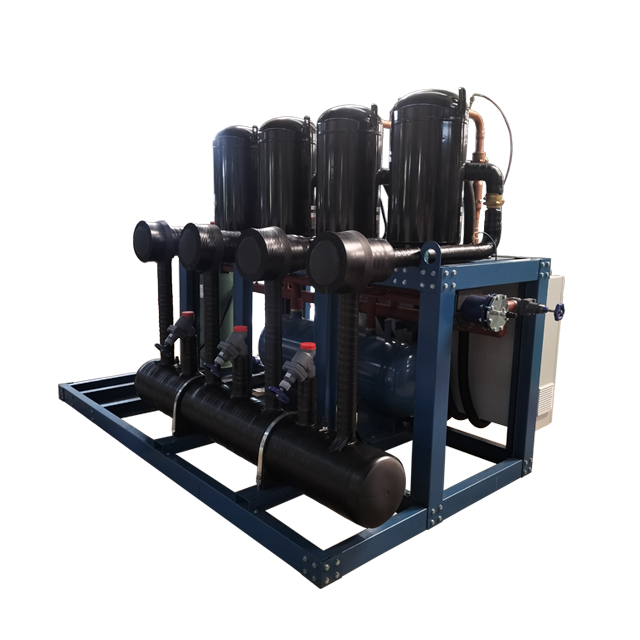

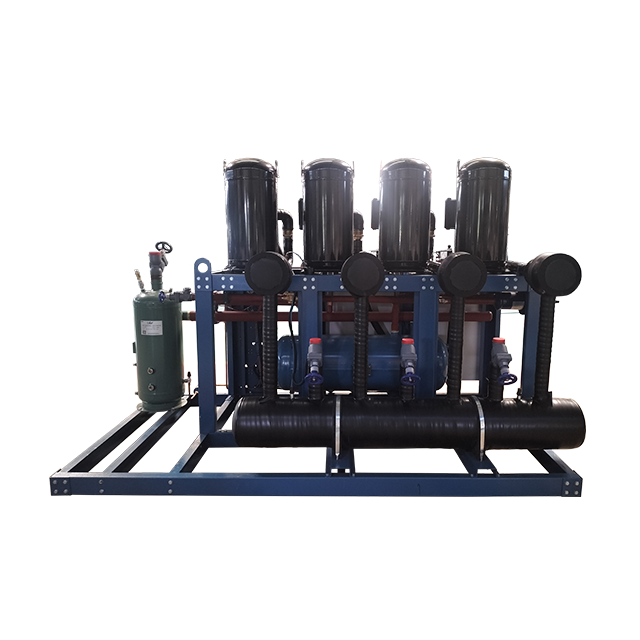

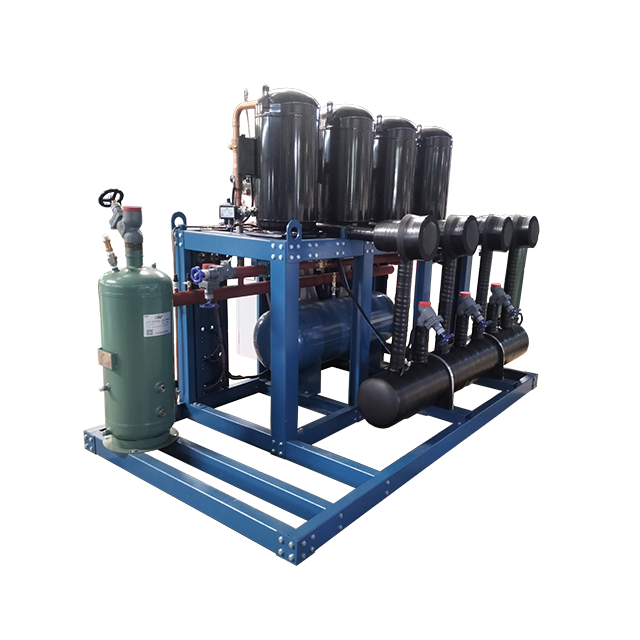

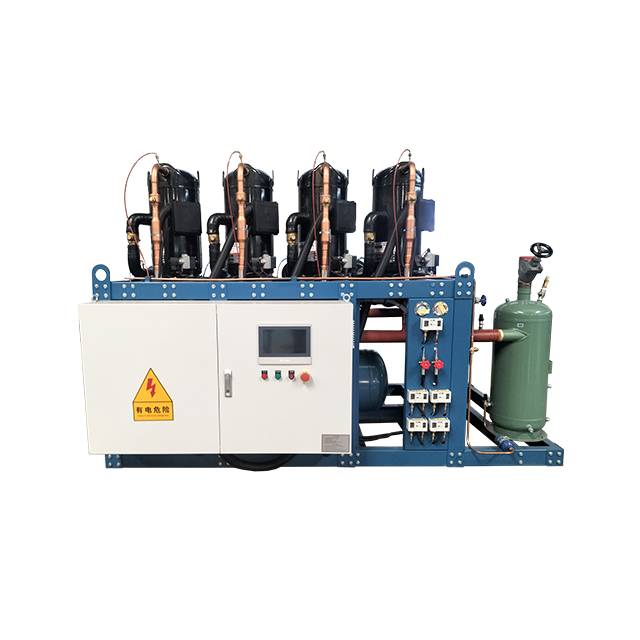

Scroll Compressor Unit
TianShun
| Quantity: | |
|---|---|
As a leading manufacturer and direct supplier of advanced refrigeration technology, we engineer high-performance cooling solutions tailored for expansive storage facilities. This integrated compressor and condensing system is meticulously crafted to deliver unparalleled thermal regulation, minimizing operational expenditure while maximizing output. Partnering with a dedicated supplier ensures direct access to premium-grade, customizable units designed to meet rigorous industrial demands.
Engineered for large-scale industrial cooling and complex HVAC frameworks.
Integrates cutting-edge scroll compression with highly efficient evaporative condensation.
Drastically reduces both electrical energy and water consumption.
The evaporative condensing system masterfully transitions refrigerant gas into a liquid state through a highly calibrated interplay of water and countercurrent air. As the superheated vapor descends through the intricately coiled top-to-bottom matrix, it is continuously bathed in a fine, atomized mist of recirculating water. This precise moisture application, combined with an upward draft of ambient air, initiates a rapid phase change, extracting latent heat with remarkable efficiency. Unlike conventional units, this architecture eliminates the harsh, metallic clatter often associated with heavy-duty cooling, replacing it with the steady, subdued hum of optimized fluid dynamics and aerodynamic airflow. The robust, anti-corrosive exterior feels cool and unyielding to the touch, reflecting a heavy-gauge construction built to withstand aggressive atmospheric conditions. By maintaining consistently lower condensing temperatures regardless of seasonal fluctuations, the machinery ensures that thermal efficiency remains at its peak during both blistering summer months and freezing winters. The seamless integration of a cooling tower, condenser surface, and internal piping within a single, monolithic enclosure not only streamlines the footprint but also creates a formidable barrier against environmental degradation, ensuring uninterrupted thermal regulation for mission-critical storage environments.
Our engineering team has meticulously standardized the technical parameters of this unit to ensure it meets the highest thresholds of industrial performance. The data provided below outlines the exact operational capabilities, material specifications, and efficiency metrics, allowing facility planners to seamlessly integrate this machinery into their existing infrastructure.
Specification Category | Technical Details |
|---|---|
Product Name | Reliable Scroll Compressor Unit / Industrial Evaporative Condenser |
Brand | TianShun (Heleng) |
Cooling System | Evaporative Cooling / Water Cooling |
Compressor Type | Scroll Compressor |
Applications | Large-scale cold storage, industrial refrigeration, industrial processing, HVAC systems |
Energy Efficiency | Saves up to 15% energy compared to traditional air-cooled systems |
Water Efficiency | Saves up to 95% water compared to continuous evaporation systems |
Space Utilization | Compact structure, requires only ~50% of the space of comparable air-cooled systems |
Refrigerant Compatibility | Ammonia and conventional Freon (R22/R404A/R507, etc.) |
Equipment Material | Anti-corrosion materials, lightweight structure, fully sealed water collection basin |
Voltage/Frequency | 220V/380V/460V, 50Hz/60Hz (Customizable) |
Control System | PLC intelligent control / Automatic electrical controller |
Operating Temperature Range | -40°C to +15°C (Evaporating temperature) |
Upgrading to this advanced thermal management system transforms how large-scale facilities handle temperature-sensitive inventory. By moving away from outdated, resource-heavy cooling methods, facility managers can achieve a harmonious balance between rigorous climate control and ecological responsibility. The architecture of this unit is specifically formulated to alleviate the common pain points of industrial refrigeration, such as exorbitant utility bills, frequent mechanical breakdowns, and excessive spatial requirements.
Exceptional Resource Conservation: Drastically slashes utility overhead by utilizing a low-condensing temperature framework that requires significantly less mechanical effort from the compressor.
All-Season Reliability: Maintains a steadfast cooling capacity even during extreme ambient temperature shifts, safeguarding your valuable inventory without interruption.
Streamlined Footprint: Frees up critical facility real estate by merging the cooling tower and condenser into a single, highly efficient module.
Corrosion Resistance: Built with specialized materials that repel rust and degradation, ensuring the exterior and internal coils remain pristine in high-humidity environments.
Hassle-Free Integration: Designed for rapid deployment with pre-configured piping and intuitive connection points, minimizing installation downtime.
Controlling operational expenditure is paramount for any large-scale facility. This system is engineered to be a formidable asset in reducing long-term financial drain. By leveraging the thermodynamic advantages of evaporative cooling, the unit fundamentally lowers the condensing temperature, which in turn relieves the workload on the compressor. This synergistic operation translates directly into measurable financial savings month over month, fundamentally improving the bottom line of your facility's operations.
15% Electrical Savings: Outperforms traditional air-cooled alternatives by requiring less horsepower to achieve the exact same cooling capacity, visibly reducing monthly power bills.
95% Water Conservation: Utilizes a highly calibrated recirculation system that evaporates only a minute fraction of water, virtually eliminating the waste seen in continuous flow setups.
Vapor Injection Technology: Enhances the refrigerant cycle in ultra-low temperature environments, ensuring the system doesn't overexert itself when the thermal demand spikes.
Predictable Budgeting: By stabilizing both power and water consumption, procurement and facility managers can accurately forecast annual utility costs without fearing sudden spikes.
Unplanned downtime is the absolute enemy of profitable operations. We have constructed this unit to serve as an unyielding pillar of reliability within the harshest industrial climates. The continuous, smooth rotation of the internal mechanisms eliminates the jarring mechanical stress that typically tears apart lesser machines. Every component, from the outer casing to the internal fluid pathways, is meticulously selected for its endurance and resistance to wear, ensuring a prolonged operational lifecycle.
Fewer Moving Parts: The scroll mechanism inherently reduces mechanical friction and wear, drastically lowering the probability of catastrophic component failure over time.
Heavy-Duty Anti-Corrosion: Treated surfaces and specialized alloys repel the corrosive effects of constant moisture and aggressive ambient chemicals found in industrial zones.
Continuous Compression Cycle: Delivers a smooth, pulsation-free flow of refrigerant, eliminating the violent vibrations that cause micro-fractures in piping over years of use.
Thermal Stress Mitigation: The intelligent distribution of cooling water prevents localized hot spots on the coils, extending the metallurgical lifespan of the heat exchanger.
Real estate within an industrial complex is a premium asset that should never be squandered on bloated machinery. This unit redefines spatial efficiency by consolidating multiple bulky components into one streamlined, monolithic package. It allows facility planners to maximize their usable square footage, dedicating more space to revenue-generating operations rather than sprawling utility infrastructure, solving a major headache for retrofitting projects.
50% Footprint Reduction: Occupies merely half the physical space of comparable air-cooled systems, freeing up valuable ground or roof area for other critical uses.
All-in-One Architecture: Seamlessly integrates the cooling tower, evaporative surface, water pump, and piping into a single, cohesive chassis.
Simplified Rigging and Hoisting: The lightweight yet rigid structural frame is designed with optimized lifting points, making crane deployment significantly safer and faster.
Unobtrusive Profile: The compact geometry allows for versatile placement options, even in older facilities where spatial constraints are notoriously tight.
Navigating the complex landscape of environmental regulations requires equipment that is both versatile and forward-thinking. This system is engineered to adapt to a wide spectrum of chemical and natural refrigerants, ensuring your facility remains compliant with evolving global standards. It empowers organizations to transition towards greener operations without sacrificing an ounce of thermal performance, securing your investment against future regulatory shifts.
Ammonia (NH3) Optimization: Perfectly suited for industrial-grade ammonia setups, utilizing materials that safely handle this highly efficient, zero-GWP natural refrigerant.
Broad Freon Support: Fully compatible with conventional synthetic refrigerants including R22, R404A, and R507, allowing for seamless integration into legacy systems.
Future-Proof Flexibility: Designed to accommodate the shifting regulatory environment, ensuring your equipment won't become obsolete as stringent new environmental laws take effect.
Reduced Carbon Footprint: The combination of lower energy draw and compatibility with eco-friendly refrigerants significantly minimizes the facility's overall greenhouse gas emissions.
Complex machinery should not require a team of specialized engineers to monitor and maintain on a daily basis. We have integrated highly intuitive, automated intelligence into the core of this system, transforming maintenance from a reactive scramble into a predictable, streamlined routine. The physical design mirrors this philosophy, offering unobstructed access to critical zones for rapid servicing, thereby drastically reducing labor costs associated with upkeep.
PLC Intelligent Control: Features a sophisticated, user-friendly interface that provides real-time diagnostics, automating temperature regulation with pinpoint accuracy.
Advanced Fault Pre-warning: Integrated electrical controllers monitor system health continuously, alerting operators to potential anomalies before they escalate into costly shutdowns.
Accessible Inspection Points: Engineered with easily removable panels and lightweight access doors, slashing the labor hours required for routine coil and pump inspections.
Anti-Scaling Basin Design: The fully sealed water collection pool features rounded, sloped corners, ensuring complete drainage and preventing the buildup of performance-robbing mineral deposits.
Industrial cooling no longer needs to be synonymous with deafening noise and structural rattling. This unit is meticulously acoustically tuned to operate with a subdued, unobtrusive hum, making it an ideal choice for facilities located near residential zones or noise-sensitive commercial areas. The inherent balance of the internal mechanisms prevents the transmission of kinetic energy into the building's foundation, creating a safer and more comfortable working environment.
Smooth Scroll Mechanics: The orbital motion of the compressor eliminates the aggressive knocking associated with reciprocating alternatives, ensuring whisper-quiet baseline operation.
Acoustically Optimized Fans: Equipped with low-noise external rotor fans that slice through the air with minimal turbulence and acoustic disruption.
Vibration Dampening: The structural chassis absorbs and neutralizes micro-vibrations, negating the need for expensive, aftermarket isolation pads or acoustic enclosures.
Regulatory Compliance: Operates well within strict municipal decibel limits, protecting your facility from noise complaints and potential regulatory fines.
Off-the-shelf solutions rarely meet the nuanced demands of complex industrial projects. As a dedicated manufacturing partner, we provide comprehensive, end-to-end engineering support to ensure the equipment aligns perfectly with your specific operational parameters. From the initial blueprint phase to final commissioning, our technical expertise serves as an extension of your own project team, ensuring flawless execution from start to finish.
Global Electrical Compatibility: Fully customizable voltage and frequency configurations (e.g., 220V/380V/460V, 50Hz/60Hz) to seamlessly match any international power grid.
Tailored OEM/ODM Services: Capable of modifying structural dimensions, material grades, and control logic to fit highly specialized, non-standard applications.
Comprehensive Project Engineering: Offering expert guidance on facility layout, thermodynamic load calculations, and optimal equipment selection to guarantee peak performance.
Lifecycle Technical Backing: Delivering robust after-sales support, including remote installation guidance, operational training, and expedited global spare parts availability.
Selecting the right manufacturing partner is just as critical as selecting the equipment itself. We bring decades of specialized engineering heritage to the table, ensuring that every unit rolling off our production line is a testament to uncompromising quality and industrial resilience. Our rigorous testing protocols and deep understanding of thermal dynamics mean you are investing in a proven, risk-free solution that will anchor your facility's operations for years to come.
Stringent Quality Assurance: Every system undergoes exhaustive stress testing under simulated extreme conditions before dispatch, guaranteeing flawless out-of-the-box performance.
Direct-from-Manufacturer Value: By eliminating intermediaries, we provide premium-tier industrial equipment at highly competitive price points, maximizing your procurement budget.
Deep Domain Expertise: Our engineering teams possess an intimate understanding of complex refrigeration cycles, enabling us to solve the most challenging thermal management problems.
Unwavering Reliability: We source only the highest-grade raw materials and electronic components, ensuring our machines outlast and outperform the competition in the field.
Global Logistics Mastery: Proven capability in securely packaging and shipping heavy industrial machinery across international borders, ensuring your project stays exactly on schedule.
To assist your procurement and engineering teams in making an informed decision, we have compiled detailed answers to the most critical technical inquiries regarding our evaporative condensing units.
Q1: How does the evaporative cooling process specifically reduce compressor workload?
By utilizing the latent heat of vaporization, the system maintains a significantly lower condensing temperature compared to ambient air-cooled units. This lower temperature reduces the discharge pressure the compressor must push against, thereby decreasing the electrical horsepower required, saving energy, and extending the mechanical life of the compressor.
Q2: Is the water collection basin prone to bacterial growth or scale accumulation?
We have engineered the basin to be fully sealed, preventing external contamination from entering the water loop. Additionally, the interior features sloped, rounded corners that facilitate 100% drainage during maintenance cycles. We highly recommend implementing a standard water treatment protocol based on your local water chemistry to completely neutralize scaling and biological risks.
Q3: Can this system be retrofitted into an existing facility using older Freon refrigerants?
Yes, the unit is highly versatile. It is constructed with robust materials and seals that are fully compatible with legacy synthetic refrigerants such as R22, R404A, and R507, as well as natural refrigerants like Ammonia. This makes it an ideal, hassle-free drop-in replacement for aging infrastructure.
Q4: What level of technical expertise is required to operate the PLC intelligent control system?
The PLC interface is designed for intuitive, user-friendly operation. While a basic understanding of refrigeration principles is beneficial, the automated electrical controller handles the complex micro-adjustments in real-time. It provides clear, visual diagnostics and fault pre-warnings, making daily monitoring straightforward for standard facility personnel.
Q5: How does the equipment perform in environments with high ambient humidity?
While evaporative efficiency is intrinsically linked to the wet-bulb temperature, our systems are sized and engineered to maintain strict cooling capacities even in highly humid climates. The countercurrent airflow design maximizes the evaporation rate, ensuring reliable thermal rejection regardless of challenging local weather patterns.
