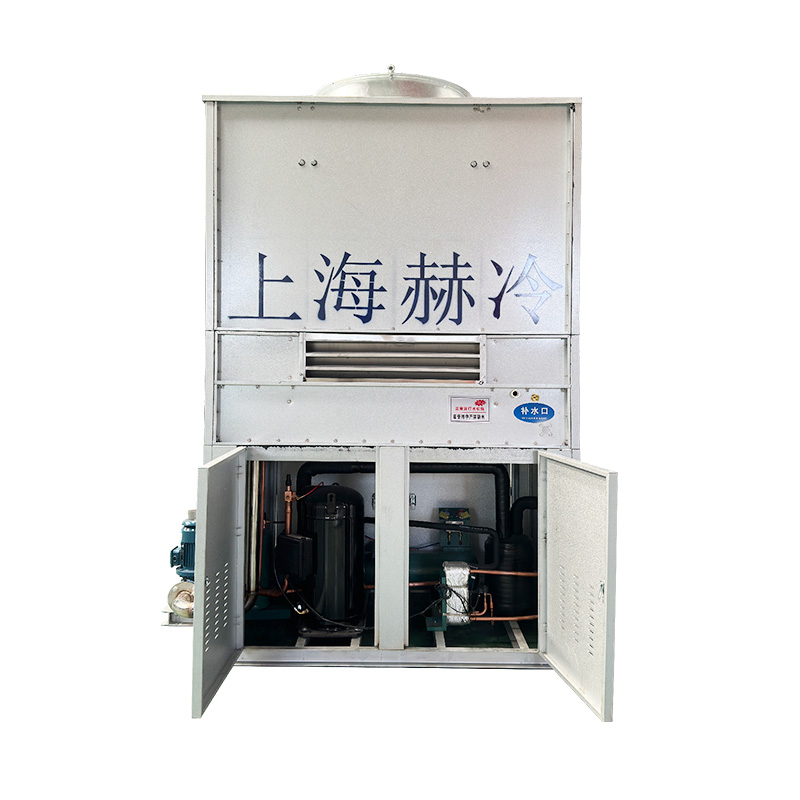

Integrated Evaporative Condensing Unit
TianShun
| Availability: | |
|---|---|
| Quantity: | |
|
Product Description
Evaporative condensers are specialised heat rejection devices that combine the cooling properties of evaporation with the efficiency of condensation to remove excess heat from a system
|
What is the difference between a condensing unit and an evaporator unit?
The evaporator coil is located inside the home and absorbs heat from indoor air, cooling it as refrigerant evaporates inside the coil. The condenser coil is located outside the home and releases heat absorbed from indoors by condensing the refrigerant back into a liquid.
|
How does an evaporative condenser work?
How does Evaporative Condensing Work? Evaporative condensers use the cooling effect of evaporation to improve the heat rejection process. Water is sprayed over the condensing coil from above while air is simultaneously blown up through the coil from below to naturally lower the condensing temperature.
|
Technical parameters of high-efficiency evaporative chillers
Evaporative condensation technology:
1. Under standard operating conditions, the whole machine has a high energy efficiency ratio, which is more than 15% energy-saving than the traditional 7-cooled chiller, and more than 30% energy-saving than the general air-cooled chiller. The energy efficiency ratio exceeds the international first-class energy efficiency standard.
2. The system does not need to be equipped with a cooling water tower and a high-power cooling water pump, the installation is simple, and the project investment cost is reduced. The amount of cooling water used is small, which completely eliminates the phenomenon of water flying in the cooling water tower. Compared with the water-cooled chiller using the cooling water tower, it can save more than 50% of the water. A variable frequency spray water pump is used to adjust the spray volume according to the system pressure of the evaporative unit to achieve energy-saving effects.
|
Product Description
Evaporative condensers are specialised heat rejection devices that combine the cooling properties of evaporation with the efficiency of condensation to remove excess heat from a system
|
What is the difference between a condensing unit and an evaporator unit?
The evaporator coil is located inside the home and absorbs heat from indoor air, cooling it as refrigerant evaporates inside the coil. The condenser coil is located outside the home and releases heat absorbed from indoors by condensing the refrigerant back into a liquid.
|
How does an evaporative condenser work?
How does Evaporative Condensing Work? Evaporative condensers use the cooling effect of evaporation to improve the heat rejection process. Water is sprayed over the condensing coil from above while air is simultaneously blown up through the coil from below to naturally lower the condensing temperature.
|
Technical parameters of high-efficiency evaporative chillers
Evaporative condensation technology:
1. Under standard operating conditions, the whole machine has a high energy efficiency ratio, which is more than 15% energy-saving than the traditional 7-cooled chiller, and more than 30% energy-saving than the general air-cooled chiller. The energy efficiency ratio exceeds the international first-class energy efficiency standard.
2. The system does not need to be equipped with a cooling water tower and a high-power cooling water pump, the installation is simple, and the project investment cost is reduced. The amount of cooling water used is small, which completely eliminates the phenomenon of water flying in the cooling water tower. Compared with the water-cooled chiller using the cooling water tower, it can save more than 50% of the water. A variable frequency spray water pump is used to adjust the spray volume according to the system pressure of the evaporative unit to achieve energy-saving effects.
