A monoblock unit is a self-contained, all-in-one system that combines all major refrigeration components (compressor, condenser, and evaporator) into a single, compact structure. This "plug-and-play" design makes them easy to install and is ideal for small to medium-sized cold rooms, walk-in coolers, and commercial refrigeration where a split system would be too complex
Monoblock Unit
TianShun
| Availability: | |
|---|---|
| Quantity: | |
|
Product Description
A monoblock unit is a self-contained, all-in-one system that combines all major refrigeration components (compressor, condenser, and evaporator) into a single, compact structure. This "plug-and-play" design makes them easy to install and is ideal for small to medium-sized cold rooms, walk-in coolers, and commercial refrigeration where a split system would be too complex
|
What Types of Monoblock Refrigeration Units?
1. According to the installation location is divided into
A.top-mount refrigeration units(roof-mounted refrigeration units)

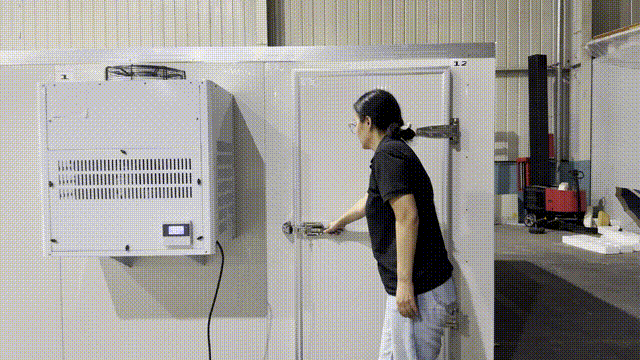

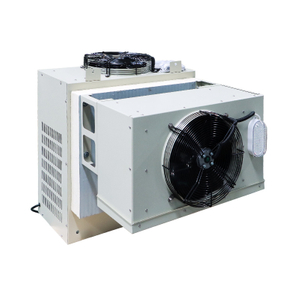

wall-mounted refrigeration units(through-wall monoblock condensing units)
According to the evaporation temperature is divided into
B.Low Temperature Monoblock Refrigeration Unit
Medium temperature Monoblock Refrigeration Unit
2. According to the working principle
Air-cooled monoblock unit
Water-cooled monoblock unit
3. According to the application
Monoblock cold room refrigeration unit
Monoblock freezer unit
Monoblock chiller unit
|
What Advantages of a Monoblock Unit?
There are multiple practical benefits a monoblock refrigeration unit provides.
It eliminates the need for complex piping between separate components, reducing installation time, associated costs, and also brings fewer leak points.
Here are its major advantages:
1. Simplified Installation: It is pre-assembled and ready to use, which reduces labor costs and the risk of installation errors.
2. Lower Installation Cost: The self-contained monoblock unit doesn’t need separate components and piping, and upfront costs.
3. Space Saving: It takes less space than the split system.
4.Easy Maintenance: All components in 1, designed for quick maintenance interventions.
|
Application scenarios
|
Data Sheet
| Unit Model | 2P | 3P | 5P |
| Rated voltage/frequency | 220V/50HZ | 220V/50HZ | 380V/50HZ |
| Temperature range | 20℃~-18℃ | 20℃~-18℃ | 20℃~-18℃ |
| Waterproof rating | IPX0 | IPX0 | IPX0 |
| Types of protection against electric shock | Ⅰ类 | Ⅰ类 | Ⅰ类 |
| Rated cooling capacity (Te -8℃) | 3.9KW | 5.8KW | 10.1KW |
| Rated power (Te -8℃) | 1.4KW | 2.1KW | 4.2KW |
| Rated input current | 7.2A | 10.8A | 8.3A |
| Maximum input power | 1.8KW | 2.7KW | 5.2KW |
| Maximum input current | 12.6A | 18.9A | 11.5A |
| Defrosting method | Thermal defrosting | Thermal defrosting | Thermal defrosting |
| Refrigerant type | R22/R404A | R22/R404A | R22/R404A |
| Cold storage dimensions (length * width * height) | 3m*2m*2.2m | 5m*2m*2.2mm | 6m*3m*3m |
|
What Is A Monoblock Refrigeration Unit?
Monoblocks are plug-in refrigeration units pre-loaded with refrigerant, and are an entirely self-contained system that can be installed through the wall or as a straddle unit.
Plug and play system are ideal for quick and easy installation, and monoblock refrigeration systems are a high quality and reliable – ensuring your cold rooms maintain the internal temperatures required.
|
Product Description
A monoblock unit is a self-contained, all-in-one system that combines all major refrigeration components (compressor, condenser, and evaporator) into a single, compact structure. This "plug-and-play" design makes them easy to install and is ideal for small to medium-sized cold rooms, walk-in coolers, and commercial refrigeration where a split system would be too complex
|
What Types of Monoblock Refrigeration Units?
1. According to the installation location is divided into
A.top-mount refrigeration units(roof-mounted refrigeration units)
wall-mounted refrigeration units(through-wall monoblock condensing units)
According to the evaporation temperature is divided into
B.Low Temperature Monoblock Refrigeration Unit
Medium temperature Monoblock Refrigeration Unit
2. According to the working principle
Air-cooled monoblock unit
Water-cooled monoblock unit
3. According to the application
Monoblock cold room refrigeration unit
Monoblock freezer unit
Monoblock chiller unit
|
What Advantages of a Monoblock Unit?
There are multiple practical benefits a monoblock refrigeration unit provides.
It eliminates the need for complex piping between separate components, reducing installation time, associated costs, and also brings fewer leak points.
Here are its major advantages:
1. Simplified Installation: It is pre-assembled and ready to use, which reduces labor costs and the risk of installation errors.
2. Lower Installation Cost: The self-contained monoblock unit doesn’t need separate components and piping, and upfront costs.
3. Space Saving: It takes less space than the split system.
4.Easy Maintenance: All components in 1, designed for quick maintenance interventions.
|
Application scenarios
|
Data Sheet
| Unit Model | 2P | 3P | 5P |
| Rated voltage/frequency | 220V/50HZ | 220V/50HZ | 380V/50HZ |
| Temperature range | 20℃~-18℃ | 20℃~-18℃ | 20℃~-18℃ |
| Waterproof rating | IPX0 | IPX0 | IPX0 |
| Types of protection against electric shock | Ⅰ类 | Ⅰ类 | Ⅰ类 |
| Rated cooling capacity (Te -8℃) | 3.9KW | 5.8KW | 10.1KW |
| Rated power (Te -8℃) | 1.4KW | 2.1KW | 4.2KW |
| Rated input current | 7.2A | 10.8A | 8.3A |
| Maximum input power | 1.8KW | 2.7KW | 5.2KW |
| Maximum input current | 12.6A | 18.9A | 11.5A |
| Defrosting method | Thermal defrosting | Thermal defrosting | Thermal defrosting |
| Refrigerant type | R22/R404A | R22/R404A | R22/R404A |
| Cold storage dimensions (length * width * height) | 3m*2m*2.2m | 5m*2m*2.2mm | 6m*3m*3m |
|
What Is A Monoblock Refrigeration Unit?
Monoblocks are plug-in refrigeration units pre-loaded with refrigerant, and are an entirely self-contained system that can be installed through the wall or as a straddle unit.
Plug and play system are ideal for quick and easy installation, and monoblock refrigeration systems are a high quality and reliable – ensuring your cold rooms maintain the internal temperatures required.
