Summer is one of the most demanding periods for cold storage operations. Higher outdoor temperatures increase the amount of heat entering the cold room, while seasonal growth in food processing, agricultural harvesting, beverage sales, catering, and cold-chain distribution often brings more frequent loading, unloading, and door opening.
A refrigeration system that performs well in mild weather may struggle when ambient temperature and operating demand rise at the same time. For this reason, businesses should evaluate their equipment before the peak season begins.
Choosing the right Refrigeration Condensing Unit is not simply a matter of comparing compressor power. The decision affects temperature stability, product quality, energy consumption, maintenance requirements, and the ability to maintain reliable operations throughout the busiest months.
A cold room must continuously remove heat entering from the surrounding environment and heat introduced during normal operation. In summer, the temperature difference between the inside of the room and the outdoor air becomes greater. This increases heat gain through insulation panels, doors, floors, joints, and other parts of the cold room structure.
Operational loads may also increase during peak season. Every door opening allows warm and humid air to enter. Workers, lighting, fans, forklifts, and other equipment add heat to the room. Newly loaded products may arrive at a temperature much higher than the required storage temperature, forcing the refrigeration system to remove additional product heat.
These conditions often occur simultaneously. A food factory may receive more raw materials, a logistics center may process more daily shipments, and an agricultural warehouse may handle larger seasonal volumes.
The Refrigeration Condensing Unit must therefore manage both the basic room load and the changing operational load. Selecting a unit only according to empty-room volume can result in slow cooling, long compressor running times, unstable temperatures, and inadequate product protection.

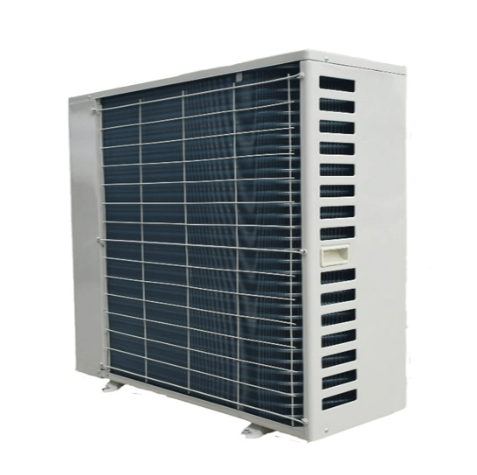

A Refrigeration Condensing Unit is one of the main working sections of a cold storage refrigeration system. It normally includes a compressor, condenser, condenser fan, receiver, control components, protection devices, and other refrigeration accessories.
The compressor draws low-pressure refrigerant vapor from the evaporator and compresses it to a higher pressure and temperature. The refrigerant then passes through the condenser, where the heat absorbed from the cold room is released into the surrounding environment.
After the refrigerant changes into a high-pressure liquid, it moves through the expansion device and returns to the evaporator, where it absorbs heat from the cold room again.
Because the condensing unit is responsible for refrigerant compression and heat rejection, its performance directly affects cooling capacity and system stability. During hot weather, the condenser must release heat into warmer outdoor air. If heat rejection is insufficient, condensing pressure may rise, compressor workload may increase, and refrigeration efficiency may decline.
A suitable unit should therefore be selected according to the expected summer operating conditions rather than only mild or average temperatures.
The first step is to define the actual cold storage application. A fresh cold room, chiller room, freezer room, blast freezer, and food-processing room have different refrigeration requirements.
A chiller room for fruits, vegetables, dairy products, beverages, or prepared food normally operates at a higher temperature than a frozen-food warehouse. A freezer room requires a lower evaporating temperature and places greater demand on the compressor.
A blast freezer must remove product heat rapidly and normally requires greater cooling capacity than a storage freezer of a similar size.
Before selecting a Refrigeration Condensing Unit, the buyer should clarify whether the room is intended for:
Fresh product chilling
Frozen product storage
Rapid product freezing
Food processing
Agricultural preservation
Cold-chain distribution
Long-term low-temperature storage
The target room temperature should also include an acceptable operating range. Choosing equipment based only on the general term “cold room” can lead to an unsuitable configuration because different temperatures require different compressor capacities and system designs.
Cold room dimensions are important, but they are only one part of the refrigeration-load calculation.
The room length, width, and height determine its internal volume and enclosure area. However, insulation material, panel thickness, floor insulation, door construction, panel sealing, and installation quality also affect the amount of heat entering the room.
Product information is equally important. The supplier should know:
What products will be stored
The incoming product temperature
The required final temperature
The quantity loaded each day
The time available for cooling
The daily operating schedule
A cold room used mainly for long-term storage has a different load from a busy distribution center with continuous loading and unloading. Frequent door opening can introduce large amounts of warm and humid air, especially during summer.
Strip curtains, air curtains, anterooms, and rapid-opening doors can reduce air infiltration, but the remaining load still needs to be considered.
The selected Refrigeration Condensing Unit should provide enough capacity to maintain stable summer operation and recover from normal loading activities without being excessively oversized.
An undersized condensing unit may run almost continuously without reaching the required temperature. After the door is opened or new products are loaded, the room may take too long to return to its normal condition.
Continuous high-load operation can increase equipment wear and leave little reserve capacity for exceptionally hot days. Product quality may also be affected when the room remains above its required temperature for extended periods.
However, selecting the largest available unit is not the correct solution either.
An oversized Refrigeration Condensing Unit may start and stop too frequently. This short cycling can create temperature fluctuations, increase electrical stress, reduce operating efficiency, and accelerate wear on compressors and control components.
The correct objective is balanced selection. The unit should match the calculated refrigeration load, target temperature, operating schedule, and system control method. Any additional capacity allowance should be based on realistic peak-season conditions rather than an arbitrary estimate.
Different compressor technologies are suitable for different cold storage capacities and operating conditions.
Piston compressor condensing units are widely used in commercial and industrial cold storage. They can be configured for medium-temperature and low-temperature applications and are familiar to many refrigeration technicians.
Scroll compressor units may be selected where compact construction, stable operation, and relatively low vibration are important. Screw compressor systems are generally considered for larger industrial refrigeration capacities and centralized cold storage projects.
Monoblock units may be suitable for smaller cold rooms where simplified installation and compact equipment are priorities.
The correct compressor configuration depends on several factors:
Required refrigeration capacity
Cold room temperature
Expected load variation
Refrigerant selection
Available installation space
Maintenance capability
Local operating conditions
Project budget
The best Refrigeration Condensing Unit is not necessarily the most powerful model. It is the unit that matches the complete cold storage application.
Condenser performance becomes especially important during summer because the refrigeration system must release heat into warmer outdoor air.
An air-cooled condenser should have sufficient heat-transfer area and fan airflow for the local maximum ambient temperature. Hot discharge air must be able to escape from the installation area without returning directly to the condenser inlet.
Nearby walls, equipment, roofing structures, packaging materials, or vegetation should not block the airflow. Insufficient installation clearance can cause hot air recirculation and increase condensing pressure.
The condenser coil should also be easy to inspect and clean. Dust, grease, fibers, leaves, and other debris can reduce heat transfer and force the compressor to work harder.
Where water-cooled or evaporative condenser solutions are considered, the buyer should evaluate water availability, water quality, treatment requirements, maintenance capability, and local environmental conditions.
The Refrigeration Condensing Unit should be evaluated according to the actual installation environment rather than catalog performance under moderate conditions.
The condensing unit and evaporator must work as a matched refrigeration system.
An incorrectly matched evaporator may cause weak heat transfer, unstable suction conditions, excessive frost, unsuitable humidity control, or poor air distribution inside the room.
Evaporator capacity should correspond to the condensing unit capacity at the required room temperature. Fin spacing, fan airflow, defrost method, air throw, mounting position, and stored-product sensitivity should also be considered.
For fresh fruit and vegetable storage, excessive airflow may increase moisture loss. In freezer rooms, frost accumulation and defrost performance become more important. In food-processing rooms, airflow must support both temperature control and the working layout.
Cold room insulation and door performance are also closely connected to refrigeration performance. Even a correctly selected Refrigeration Condensing Unit cannot fully compensate for damaged door gaskets, poorly sealed panel joints, insufficient insulation, or uncontrolled door opening.
TIANSHUN provides cold rooms, refrigeration condensing units, condensers, evaporators, insulation panels, and cold room doors, allowing the major components to be considered as one coordinated cold storage system.
Summer peak operation often means longer compressor running hours and more frequent load changes. Suitable controls and protection devices are therefore essential.
The unit should include appropriate high-pressure protection, low-pressure protection, overload protection, electrical protection, and controls matched to the compressor and refrigerant circuit.
Temperature sensors should be correctly positioned and calibrated. Poor sensor placement can cause inaccurate temperature readings, unnecessary compressor cycling, or delayed cooling response.
Alarm functions can also help operators identify abnormal temperature, pressure, or power conditions before stored products are affected.
Before ordering, buyers should confirm:
Voltage
Frequency
Electrical phase
Available power capacity
Local electrical standards
Required monitoring functions
These details should be confirmed before production and installation to avoid unsafe modifications or commissioning delays.
The installation area should provide enough space for condenser airflow, refrigerant piping, electrical access, maintenance, and cleaning.
The distance and height difference between the condensing unit and evaporator can affect piping design, oil return, pressure drop, and refrigerant charge. These details should be reviewed before the final equipment configuration is confirmed.
Outdoor units may require protection from rain, snow, or direct exposure, but any protective structure must not restrict ventilation.
Coastal locations, dusty industrial sites, high-altitude areas, and extremely hot climates may require additional material or design considerations. Noise and vibration should also be evaluated when the unit is installed near hotels, restaurants, offices, retail spaces, or residential areas.
Providing complete site information helps the supplier recommend a more suitable Refrigeration Condensing Unit and reduces the risk of changes during installation.
Businesses with an existing cold storage system should complete a full inspection before peak demand begins.
The condenser coil should be cleaned, fans checked, electrical terminals inspected, and refrigerant piping examined for possible leakage. Compressor noise, vibration, oil condition, suction pressure, discharge pressure, and operating temperature should be reviewed by qualified refrigeration personnel.
Inside the cold room, operators should inspect the evaporator, drainage line, defrost system, door gaskets, panel joints, lighting, and temperature sensors.
It is also useful to record how quickly the room returns to its target temperature after normal loading and door opening. Slow recovery may indicate insufficient capacity, poor heat transfer, air leakage, or developing equipment problems.
When an existing Refrigeration Condensing Unit is already operating near its maximum capacity during mild weather, its summer performance may be inadequate. Early testing gives the business time to repair, upgrade, or replace equipment before seasonal demand reaches its highest point.
An accurate equipment recommendation requires more than cold room dimensions.
Before requesting a quotation, buyers should prepare the following information:
Cold room length, width, and height
Required room temperature
Stored product type
Incoming product temperature
Daily loading quantity
Required cooling or freezing time
Maximum local ambient temperature
Door size and opening frequency
Insulation material and thickness
Local power supply
Installation location
Daily operating hours
Monitoring and control requirements
This information allows the supplier to calculate the actual summer cooling load and recommend a suitable Refrigeration Condensing Unit, evaporator, condenser, and control configuration.
The best time to evaluate refrigeration equipment is before high temperatures and heavy product turnover reveal weaknesses in the existing system.
Slow temperature recovery, continuous compressor operation, high condensing pressure, unusual noise, and unstable room temperature can become serious operational risks during peak season.
Choosing the right Refrigeration Condensing Unit requires a logical process. Businesses should define the cold room application, calculate the complete summer load, select an appropriate compressor and condenser configuration, match the evaporator, review protection controls, and confirm installation conditions.
Preparing early also provides enough time for equipment production, delivery, installation, commissioning, and performance testing.
For food processors, agricultural businesses, cold-chain warehouses, hotels, supermarkets, restaurants, and industrial users, the correct refrigeration system supports stable temperature control, better product protection, and more reliable operation throughout the summer peak season.
