PU Wall Panel
TianShun
| Availability: | |
|---|---|
| Quantity: | |
|
Product Description
Polyisocyanurate) Insulated Sandwich Panels are engineered as the premium solution for cold storage and controlled environment facilities. Featuring an advanced PIR foam core, these panels offer superior fire performance and exceptional thermal insulation, making them the ideal choice for applications where energy efficiency and safety are paramount.
|
Data Sheet
| Core Thickness | 50mm 75mm 100mm 120mm 150mm 180mm 200mm | ||||||
| Density of core | 38-45kg/m3 | ||||||
| Steel Plate Thickness | 0.4-0.8mm | ||||||
| Metal Sheet | Color Coated Steel Sheet / Stainless steel plate | ||||||
| Galvanized layer of steel plates | Exterior plate and Inner plate: Aluzinc or Zinc coating | ||||||
| Panel Length | According to customers’ request | ||||||

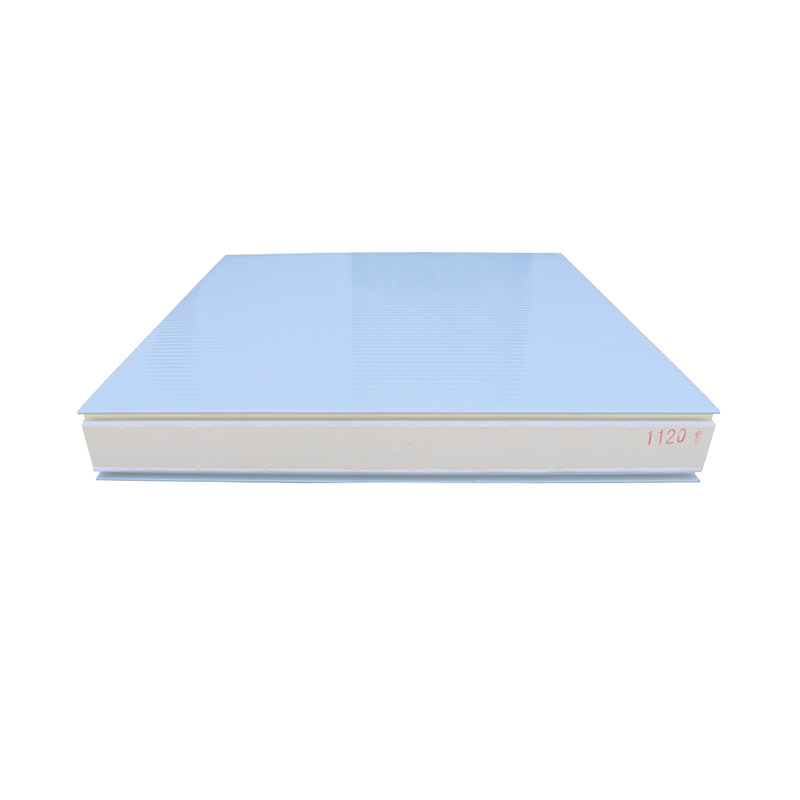

| Width | 1000/1120/1130mm | ||||||
|
Testing Quality

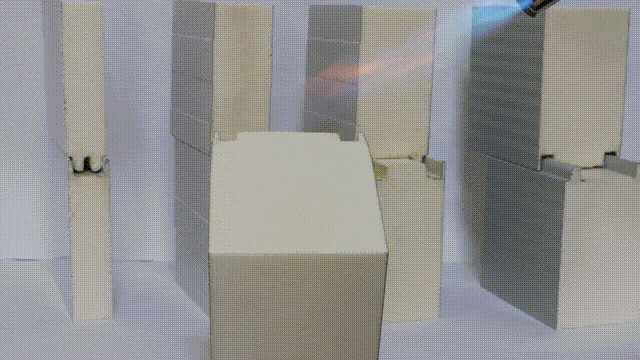

The first two dynamic test images visually demonstrate the flame-retardant properties of our cold storage panel core material. We simulated a real-world fire using a standard flame source, continuously burning the panel surface. As you can see, the panel didn't burn violently. Instead, it carbonized its surface, forming a dense char layer that effectively blocked the flames from penetrating deeper. This is the most critical step! Once the fire source was removed, the open flames on the panel extinguished themselves within a very short time (approximately 2-3 seconds), with no signs of sustained combustion.

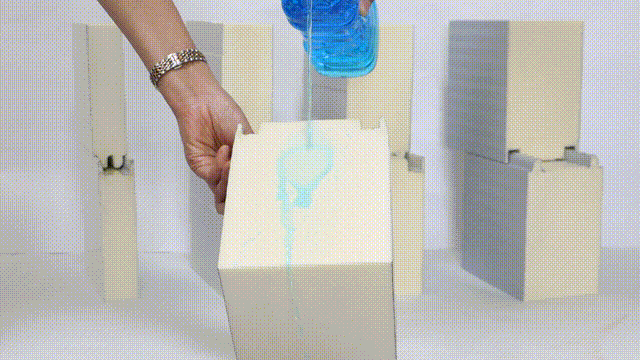

The third dynamic test image is a transparent statement about our "closed-cell rate." Our closed-cell rate of over 98% means that the vast majority of the countless cells within the panel are independent and sealed. These countless tiny "vacuum compartments" together create an impenetrable barrier, completely isolating moisture and water vapor.
As a premier manufacturer and supplier of advanced thermal management solutions, we engineer High-Density PU Cold Room Panels designed for rigorous temperature control. These structural insulated panels deliver unmatched thermal resistance, structural integrity, and long-term operational efficiency for industrial cooling facilities.
Core Material: Polyurethane (PU) / Polyisocyanurate (PIR)
Foam Density: 38 - 45 kg/m³
Thermal Conductivity: ≤ 0.022 - 0.024 W/m·K
Fire Resistance Rating: Class B1 / B2
Step into a facility constructed with our High-Density PU Cold Room Panels, and you immediately sense the profound isolation from external thermal fluctuations. The robust, rigid polyurethane core is tightly bonded to premium metal cladding, creating a heavy-duty, monolithic barrier that feels solid to the touch and visually projects industrial-grade hygiene. The smooth, flawlessly finished stainless steel or color-coated steel surfaces reflect a commitment to impeccable sanitation, allowing for effortless washdowns and resisting the harsh, damp environments typical of commercial cooling spaces. By effectively halting thermal bridging, these panels dramatically reduce the continuous hum and heavy workload of your refrigeration compressors. The meticulous craftsmanship ensures that every joint aligns with absolute precision, locking out ambient air and sealing in the exact climate your sensitive inventory demands. This translates directly into stabilized internal environments, significantly lower energy expenditures, and a formidable defense against inventory spoilage, ultimately transforming your architectural footprint into a highly optimized, energy-conserving asset.
Parameter | Specification |
|---|---|
Product Name | High-Density PU Cold Room Panels |
Core Material | Polyurethane (PU) / Polyisocyanurate (PIR) |
Foam Density | 38 - 45 kg/m³ |
Panel Thickness | 50mm, 75mm, 100mm, 120mm, 150mm, 180mm, 200mm |
Surface Cladding Material | Color-coated Steel, Stainless Steel (304/201), Embossed Aluminum, Salinized Steel |
Steel Sheet Thickness | 0.3mm - 0.8mm (Customizable) |
Thermal Conductivity | ≤ 0.022 - 0.024 W/m·K |
Fire Resistance Rating | Class B1 / B2 |
Connection Type | Cam-lock (Eccentric hook) / Plug-in (Tongue and groove) |
Applicable Temperature Range | -45°C to +50°C |
Compressive Strength | ≥ 150 - 160 kPa |
Certifications | ISO9001, CE, RoHS, SGS |
Our insulation panels are engineered to elevate operational efficiency while minimizing long-term maintenance overhead. The integration of premium materials and advanced manufacturing techniques results in a product that fundamentally upgrades your facility's infrastructure.
Uncompromising Structural Integrity: The high-density foam core provides exceptional compressive strength, ensuring the walls remain rigid and unyielding even under heavy industrial use.
Acoustic Dampening Properties: Beyond thermal isolation, the dense polyurethane core acts as a formidable sound barrier, noticeably muting the roar of heavy machinery and creating a quieter, safer working environment.
Moisture and Vapor Resistance: The impermeable metal cladding combined with precise joint seals prevents condensation buildup, eliminating the damp, musty odors associated with compromised insulation and protecting your inventory from water damage.
Streamlined Maintenance: The sleek, non-porous surface finish repels dirt and resists chemical corrosion, allowing maintenance teams to sanitize the area swiftly and thoroughly without degrading the material.
At the heart of our panels lies a meticulously formulated 38-45 kg/m³ high-density PU/PIR foam core, achieving an extraordinary thermal conductivity of ≤0.022 W/m·K. This exceptional thermal resistance acts as an impenetrable shield, effectively severing the heat exchange between the internal cold zone and the external environment.
Drastic Energy Reductions: By maintaining a stable internal climate, the panels significantly alleviate the operational strain on your refrigeration units, leading to a measurable drop in daily energy consumption.
Long-Term Cost Efficiency: The superior insulation directly translates into reduced utility bills, ensuring a rapid return on investment and lowering the total cost of ownership over the facility's lifespan.
Consistent Climate Control: Eliminates temperature fluctuations, guaranteeing that sensitive goods remain in their optimal state without the risk of thermal shock.
Safety is non-negotiable in industrial environments. Our panels are rigorously tested and certified to meet Class B1/B2 fire resistance standards, providing a critical layer of defense for your high-value assets and personnel.
Advanced Carbonization Technology: In the event of fire exposure, the PIR/PU core carbonizes rather than melting, preventing the formation of hazardous flaming droplets that can spread fires rapidly.
Regulatory Adherence: Fully compliant with stringent commercial and industrial fire safety codes, facilitating smoother building inspections and securing favorable insurance premiums.
Asset Protection: Creates a robust, fire-retardant envelope around your cold chain storage, minimizing potential catastrophic losses during emergency situations.
The exterior facing of an insulation panel is your first line of defense against contamination and wear. We offer a versatile selection of premium claddings, including color-coated steel, food-grade 304 stainless steel, and embossed aluminum, each tailored to meet specific environmental demands.
Impeccable Sanitation: The ultra-smooth, non-porous surfaces actively inhibit bacterial proliferation and fungal growth, making them the perfect fit for high-cleanliness environments like pharmaceutical storage and food processing.
Corrosion and Oxidation Resistance: Engineered to withstand harsh, damp, and chemically intensive cleaning regimens without rusting or degrading, maintaining a pristine, professional appearance year after year.
Tactile Durability: The heavy-duty metal sheets (0.3mm - 0.8mm) feel solid and resilient, capable of absorbing minor impacts and resisting the daily wear and tear of a bustling facility.
Time is a critical resource during facility construction or upgrades. Our panels feature highly engineered connection systems—either the secure Cam-lock (eccentric hook) or the rapid Plug-in (tongue and groove) design—to streamline the assembly process.
Seamless, Cold-Bridge-Free Joints: The precision-milled edges interlock flawlessly, while integrated EPDM sealing strips guarantee absolute airtightness, preventing any microscopic leaks that could compromise temperature stability.
Accelerated Project Timelines: The intuitive modular design allows construction crews to assemble the enclosure rapidly, drastically cutting down on site time and minimizing disruption to your ongoing operations.
Reduced Labor Expenditures: Because the system is designed for straightforward, interlocking assembly, it requires fewer specialized tools and fewer man-hours, optimizing your overall construction budget.
No two cooling facilities share the exact same requirements. We deliver a fully adaptable panel system with thicknesses ranging from a sleek 50mm up to a massive 200mm, ensuring precise alignment with your specific thermal demands.
Full-Spectrum Temperature Coverage: Whether you are constructing a fresh produce cooler (0 to 10°C), a standard freezer (-18°C), or an ultra-low temperature blast freezing tunnel (-45°C), we have the exact thickness required to maintain optimal conditions.
Tailored Dimensions and Materials: Beyond thickness, every panel can be custom-cut to your exact spatial dimensions and finished with the specific metal cladding your industry regulations dictate.
Future-Proof Flexibility: The modular nature of our customized panels means your facility can be easily expanded or reconfigured as your storage capacity needs evolve over time.
Our high-density panels are the foundational building blocks for a vast array of temperature-controlled environments. They are engineered to perform flawlessly across diverse and demanding sectors, providing a professional, one-stop enclosure solution.
Cold Chain Logistics Hubs: Ensures massive distribution centers maintain strict temperature zones, safeguarding the integrity of goods during transit and storage.
Food Processing and Slaughterhouses: Withstands the intense washdowns and strict hygiene protocols required in meat processing and central kitchen operations.
Pharmaceutical and Vaccine Storage: Delivers the uncompromising temperature stability required to protect life-saving medications and sensitive biological compounds.
Commercial Retail Storage: Provides reliable, energy-efficient back-room cooling for supermarkets and large-scale retail food outlets.
Investing in our thermal panels means partnering with a manufacturer dedicated to uncompromising quality and long-term reliability. We leverage state-of-the-art manufacturing technologies to guarantee that every panel meets exacting global standards.
Automated Precision Manufacturing: Utilizing advanced continuous foaming lines (such as OMS technology), we ensure perfectly uniform foam distribution and flawless dimensional accuracy across every single panel.
Global Certification Standards: Our products are backed by rigorous international certifications, including ISO9001, CE, RoHS, and SGS, verifying their safety, quality, and environmental compliance.
Decade-Long Peace of Mind: We stand firmly behind our engineering with a comprehensive warranty extending beyond 10 years, complemented by a responsive, global technical support network ready to assist with any operational inquiries.
Selecting the right manufacturing partner is as critical as selecting the right materials. We bring decades of specialized engineering expertise to your project, ensuring that your thermal management infrastructure is built for ultimate resilience and efficiency.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide premium-grade structural insulated panels at highly competitive price points, maximizing your procurement budget.
End-to-End Engineering Support: From initial thermal load calculations to custom CAD layouts and final installation guidance, our technical team remains actively engaged throughout your project lifecycle.
Unwavering Supply Chain Reliability: Our high-capacity automated production lines ensure that even the most massive, time-sensitive orders are fulfilled and delivered precisely on schedule.
Commitment to Sustainability: We utilize eco-friendly blowing agents and highly recyclable metal claddings, helping your facility achieve its green building certifications and reduce its overall carbon footprint.
We understand that specifying structural insulated panels requires precise technical information. Below are answers to the most common inquiries regarding our high-density PU cold room solutions.
1. How do I determine the correct panel thickness for my specific temperature requirements?
Panel thickness is directly correlated with your target internal temperature and ambient external conditions. Generally, 50-75mm panels are ideal for processing rooms (above 0°C), 100-120mm for standard freezers (-18°C), and 150-200mm for blast freezers or ultra-low temperature storage (down to -45°C). Our engineering team can perform precise thermal load calculations to recommend the optimal thickness for your facility.
2. What is the difference between the Cam-lock and Plug-in connection systems?
The Cam-lock system uses embedded eccentric hooks that are locked together with a hex wrench, providing an exceptionally tight, secure mechanical pull, ideal for smaller or highly customized rooms. The Plug-in (tongue and groove) system relies on a precision friction fit, often preferred for large-scale continuous walls where rapid installation and seamless aesthetics are the primary goals.
3. Can these panels withstand frequent, high-pressure chemical washdowns?
Yes. For environments requiring rigorous sanitation, such as slaughterhouses or pharmaceutical plants, we highly recommend our panels clad in 304 stainless steel. This surface material is virtually impervious to rust, oxidation, and the harsh chemical agents typically used in high-pressure industrial cleaning protocols.
4. How does the B1/B2 fire rating impact the safety of my facility?
A B1 rating indicates the material is highly flame-retardant, while B2 indicates it is moderately combustible but self-extinguishing. Crucially, our PIR/PU cores are engineered to carbonize when exposed to direct flame. This means they form a protective char layer rather than melting into flaming droplets, significantly slowing fire spread and allowing crucial time for emergency response.

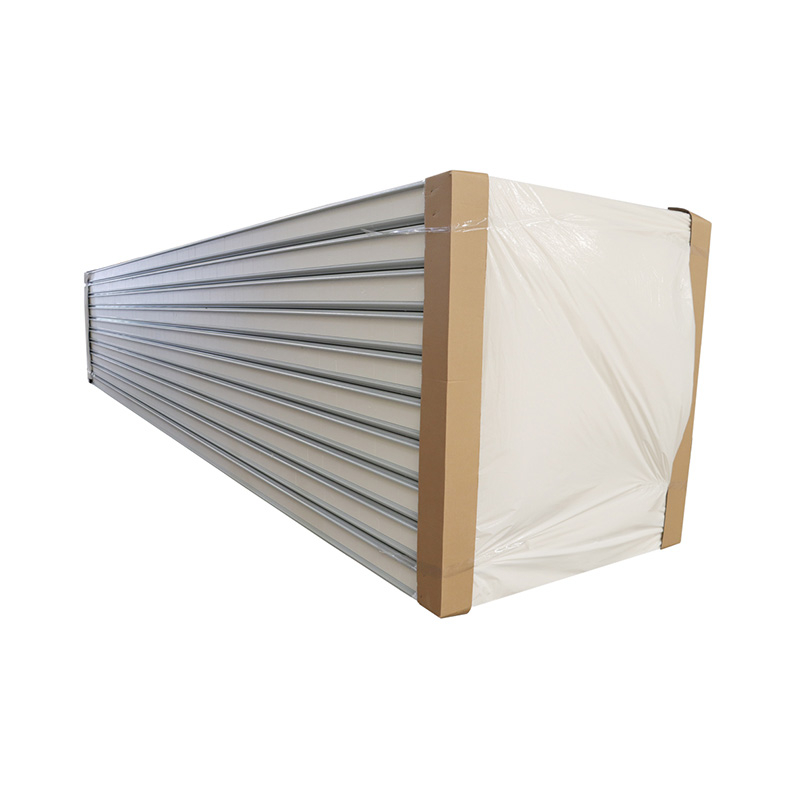

5. Are the panels shipped with protective film, and how should they be handled on-site?
Absolutely. Every panel is coated with a heavy-duty, peel-off protective film to prevent scratches and abrasions during transit and installation. We recommend leaving this film in place until the final stages of construction. Panels should be stored flat, elevated off the ground on pallets, and protected from direct weather exposure until they are installed.
